    Online railway reservation system

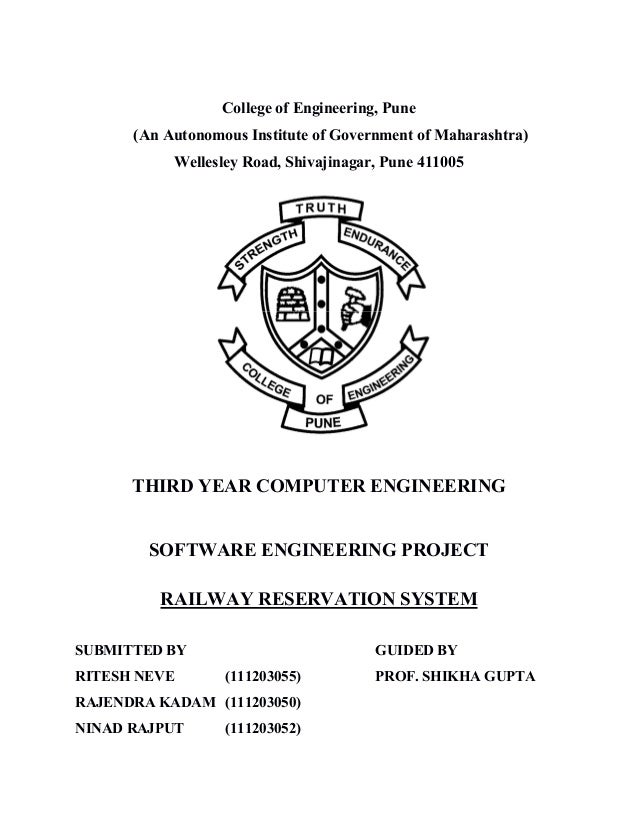

    1. 1.
      College of Engineering, Pune
      (An Autonomous Institute of Government of Maharashtra)
      Wellesley Road, Shivajinagar, Pune 411005
      THIRD YEAR COMPUTER ENGINEERING
      SOFTWARE ENGINEERING PROJECT
      RAILWAY RESERVATION SYSTEM
      SUBMITTED BY GUIDED BY
      RITESH NEVE (111203055) PROF. SHIKHA GUPTA
      RAJENDRA KADAM (111203050)
      NINAD RAJPUT (111203052)

    2. 2.

      INDEX
      1. ABSTRACT 1
      2. REQUIREMENTS: 2
      2.1 FUNCTIONAL REQUIREMENTS
      2.2 NON FUNCTIONAL REQUIREMENTS
      2.3 TECHNICAL REQUIREMENTS
      3. DIAGRAMS:
      3.1 CLASS DIAGRAM 3
      3.2 OBJECT DIGRAM 5
      3.3 USE CASE DIAGRAM 6
      3.4 ACTIVITY DIAGRAM
      -WITH SWIM LANE 7
      -WITHOUT SWIM LANE 8
      3.5 STATECHART DIAGRAM 9
      3.6 SEQUENCE DIAGRAM 11
      3.7 COLLABORATION DIAGRAM 12
      3.8 DEPLOYMENT DIAGRAM 13
      3.9 PACKAGE DIAGRAM 14

    3. 3.

      1
      ABSTRACT
      The railway reservation system is software for the purpose of reserving train
      seats at any time and from anywhere. This application provides us complete
      information about a train between specified source and destination. This
      application gives current status of reservations of particular train, fares for different
      classes of train and also waiting status. For this application, a visitor must register
      to avail the service. In this system, train records are maintained and retrieved.
      Administrator monitors all users and their transactions. Administrator has complete
      access to database and can add train or cancel train or add station for particular
      train or skip a station for train. There are several payment options for user like
      credit card, debit card and a user can also cancel ticket. This application also
      provides current position of train i.e. name of stations between which the train is
      currently running. It provides familiar and attractive interface with inserting and
      reporting capabilities.

    4. 4.

      2
      REQUIREMENTS:
      2.1 Functional requirements
      1. Secure registration and profile management facilities for Customers
      2. Secured mechanism for Payment
      3. Account management
      2.2 Non-functional requirements
      1. Performance
      2. Quality
      3. Secure access of confidential data (user’s details).
      4. 24 X 7 availability
      2.3 Technical requirements
      1. Browser
      2. Apache server
      3. MySQL
      4. PHP
      5. javascript
      6. HTML & CSS

    5. 5.

      3
      3.1 CLASS DIAGRAM:
      A class diagram is description of set of objects that share same attributes,
      operations, methods, relationships and semantics.
      In our project following classes are identified –
      1. User
      This class consists of both registered user and visitor. A visitor must register
      to avail the service.
      2. Admin
      This class consists of administrators to manage a system in different areas.

    6. 6.

      4
      3. Database
      This class is the major part of the system which contains all the information
      about trains, customers, administrators.
      4. Train
      This class contains the data about trains i.e. Train id, train name, source,
      destination, position.
      5. Ticket
      This class contains the data about tickets i.e. PNR, Status, no. of persons,
      date.
      MULTIPLICITY:
      1. User – database
      This relationship is many to one since so many users can access the one
      railway database.
      2. Train – user
      This relationship is one to many since many users can travel by a single
      train.
      3. Admin – database
      This relationship is many to one since so many Administrators can handle
      single database.
      4. User – ticket
      This relationship is one to many since one user can book many tickets.
      5. Train – database
      This relationship is many to one since so many Administrators can handle
      single database.

    7. 7.

      5
      3.2 OBJECT DIAGRAM:
      Object diagram describes the static structure of the system at any instant. In our
      case a registered users “Ritesh” and “Rajendra” access the database to see the
      details of book ticket. Ritesh books a ticket from pune to mumbai by Sahyadri
      express. Rajendra books a ticket from Delhi to Mumbai by Rajdhani express.
      Pundlik is administrator with Admin_id = 1.

    8. 8.

      6
      3.3 USE CASE DIAGRAM:
      A use case describes an interaction with actors as a sequence of messages between
      the system and one or more actors. The term actor includes humans, as well as
      other computer systems and processes.
      The use case diagram is having following three actors
      1. Visitor: – Visitor must register to use the service.
      2. Registered user: – A registered user can Login, book ticket, cancel ticket, pay
      and inquire ticket.
      3. Administrator: – Administrator maintains the database. Administrator can add
      train or station, remove train or station from database.

    9. 9.

      7
      3.4 ACTIVITY DIAGRAM:
      WITHOUT SWIM LANE

    10. 10.

      8
      3.4 ACTIVITY DIAGRAM:
      WITH SWIM LANE
      ACTIVITIES:
      1. User login and authentication
      2. Select train, book ticket and pay
      3. Select ticket, cancel ticket and refund
      4. Logout

    11. 11.

      9
      3.5 STATECHART:

    12. 12.

      10
      STATES :
      1. Authentication and logged in
      2. Train availability
      3. Book ticket
      4. Payment
      5. Show ticket
      6. History
      7. Cancel ticket
      8. Refund
      9. Logout
      TRANSITIONS :
      1. Authenticate – Logged in
      2. Logged in – Enter train details – Train availability – Enter passenger details
      – Booking ticket – Enter payment info – Pay – Show ticket – Logout
      3. Logged in – Check previous tickets – Cancel ticket – Refund – Logout

    13. 13.

      11
      3.6 SEQUENCE DIAGRAM:
      A sequence diagram shows a set of messages arranged in time sequence. Each
      classifier role is shown as a lifeline—that is, a vertical line that represents the role
      over time through the entire interaction. Messages are shown as arrows between
      lifelines. A sequence diagram can show a scenario that is, an individual history of a
      transaction. User logging in gets authenticated. On successful authentication,
      he/she can book ticket or cancel ticket. While booking the user will be shown a
      new ticket and pay accordingly. A message is displayed on successful payment.
      While canceling a ticket, user gets refund. This whole sequence has been captured
      by sequence diagram.

    14. 14.

      12
      3.7 COLLABORATION DIAGRAM:
      A collaboration is a description of a collection of objects that interact to implement
      some behavior within a context. It describes a society of cooperating objects
      assembled to carry out some purpose. A collaboration contains slots that are filled
      by objects and links at run time. A collaboration slot is called a role because it
      describes the purpose of an object or link within the collaboration. Given is the
      collaboration diagram. In which collaboration of user are shown, that include the
      entire process of user logging, booking the new ticket, canceling ticket.

    15. 15.

      13
      3.8 DEPLOYMENT DIAGRAM:
      Deployment diagrams are a set of nodes and their relationships. These nodes are
      physical entities where the components are deployed. The deployment view
      represents the arrangement of runtime component instances on node instances. A
      node is a runtime resource, such as a computer, device, or memory. This view
      permits the consequences of distribution and resource allocation to be assessed.
      Deployment diagrams are used for visualizing deployment view of a system. This
      is generally used by the deployment team. So the deployment diagrams are used to
      describe the static view of system. When we are going to build a software intensive
      system, you have to consider both its logical and physical dimensions. On the
      logical side, you'll find things such as classes, interfaces, collaborations,
      interactions, and state machines. On the physical side, we'll find components and
      node which are used in the deployment diagram.

    16. 16.

      14
      3.9 PACKAGE DIAGRAM:
      Package diagram is UML structure diagram which shows packages and
      dependency between packages. This diagram shows different views of system.
      Basically package is a collection of classes and use cases. Packages contain top-
      level model elements, such as classes and their relationships, state machines, use
      case graphs, interactions, and collaborations anything not contained in some other
      element. Elements such as attributes, operations, states, lifelines, and messages are
      contained in other elements and do not appear as direct contents of packages.
